SPECIFICATIONS

Brand Name: None

Voltage: 48V

Foldable: No

Wattage: > 500w

Power Supply: Lithium Battery

Certification: ce

Range per Power: > 60 km

Style: Multifunctional Type

Model Number: Electric Bike Kit

Motor: Brushless

Rated Passenger Capacity: One Seat

Wheel Size: 26“

Max Speed: 30-50km/h

Frame Material: Aluminum Alloy

Product Name: Electric Bike Conversion kit

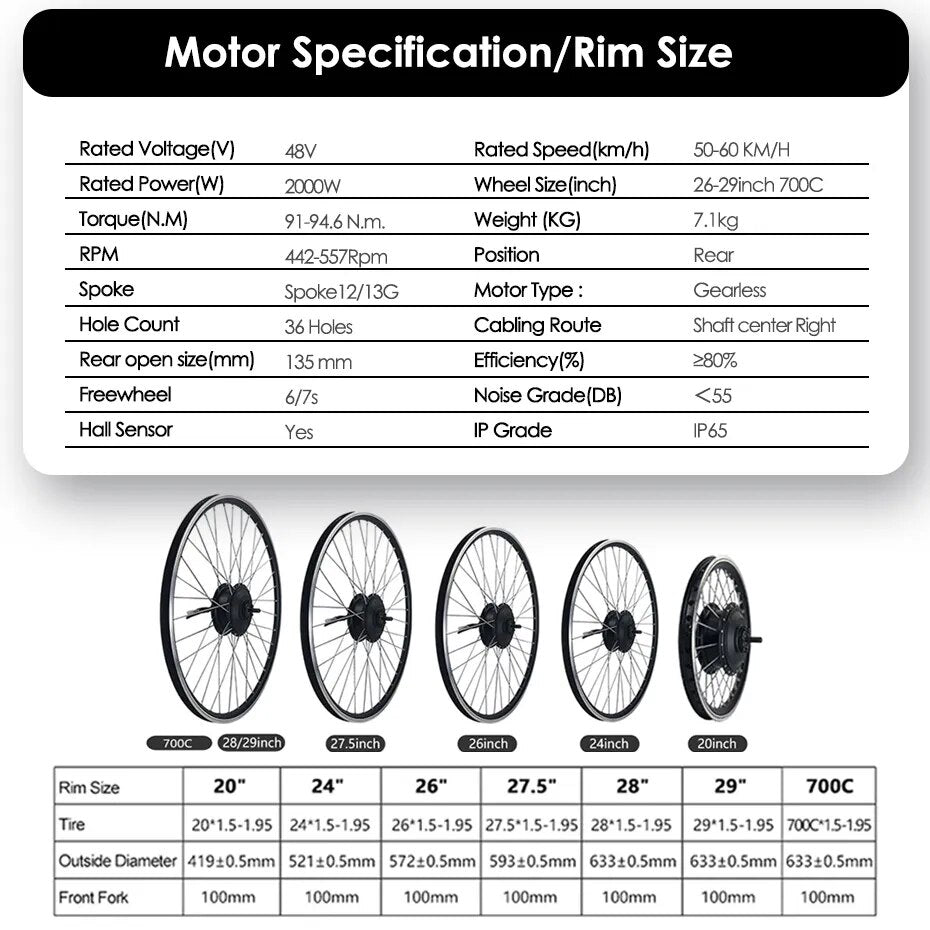

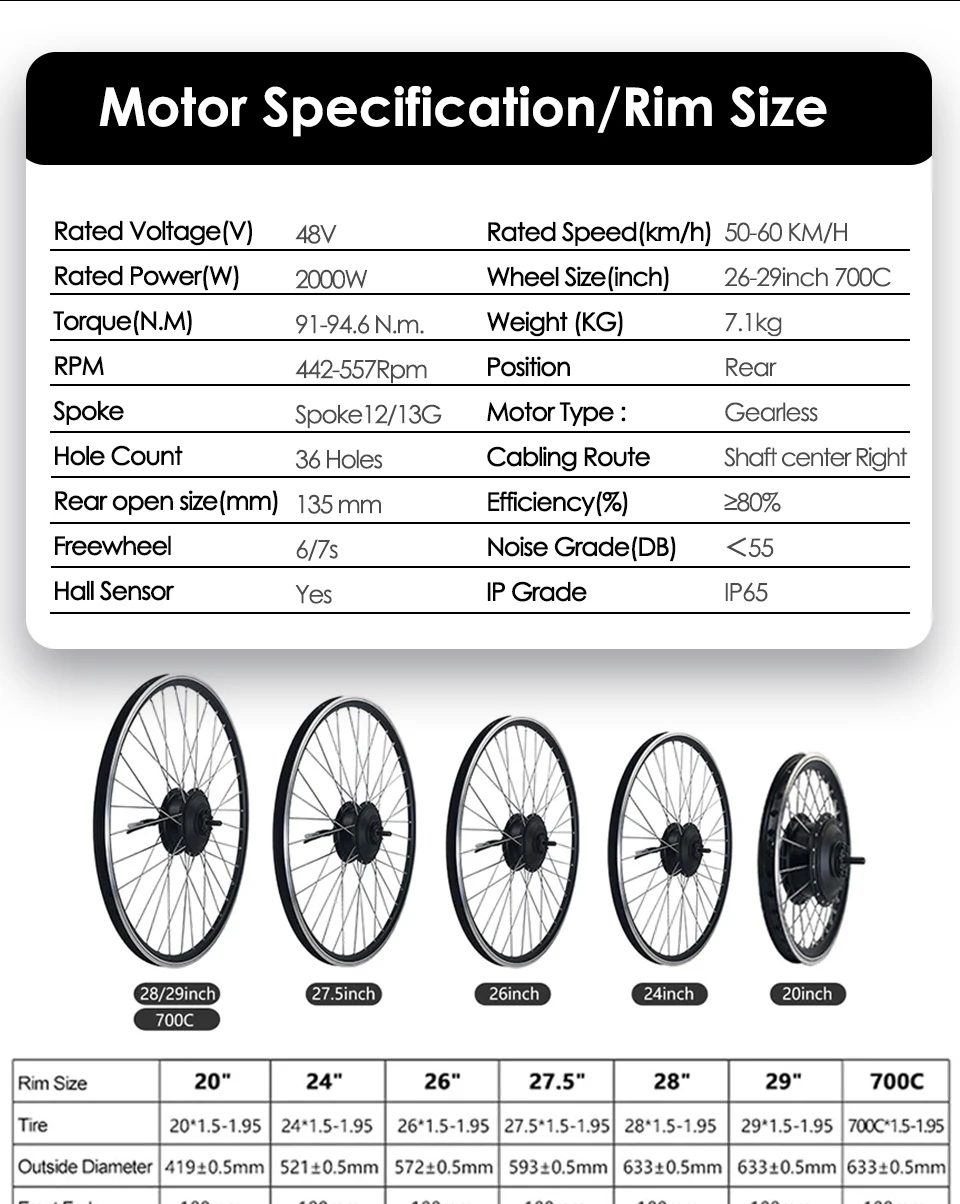

Motor Type: Brushless non-gear hub motor

Voltage: 48V Ebike Conversion kit

Wattage: 2000w Wheel Hub Motor

Motor wheel size: 26inch 700C 27.5inch 29inch

Power Supply: Lithium battery

Battery Capacity: 13/15/20//24ah Lithium battery

Max Range: up to 100km long range

Max Speed: 45-65 km/h Fast Speed

Age Range (Description): Adult

Certification: CE

Warranty: Yes, one year

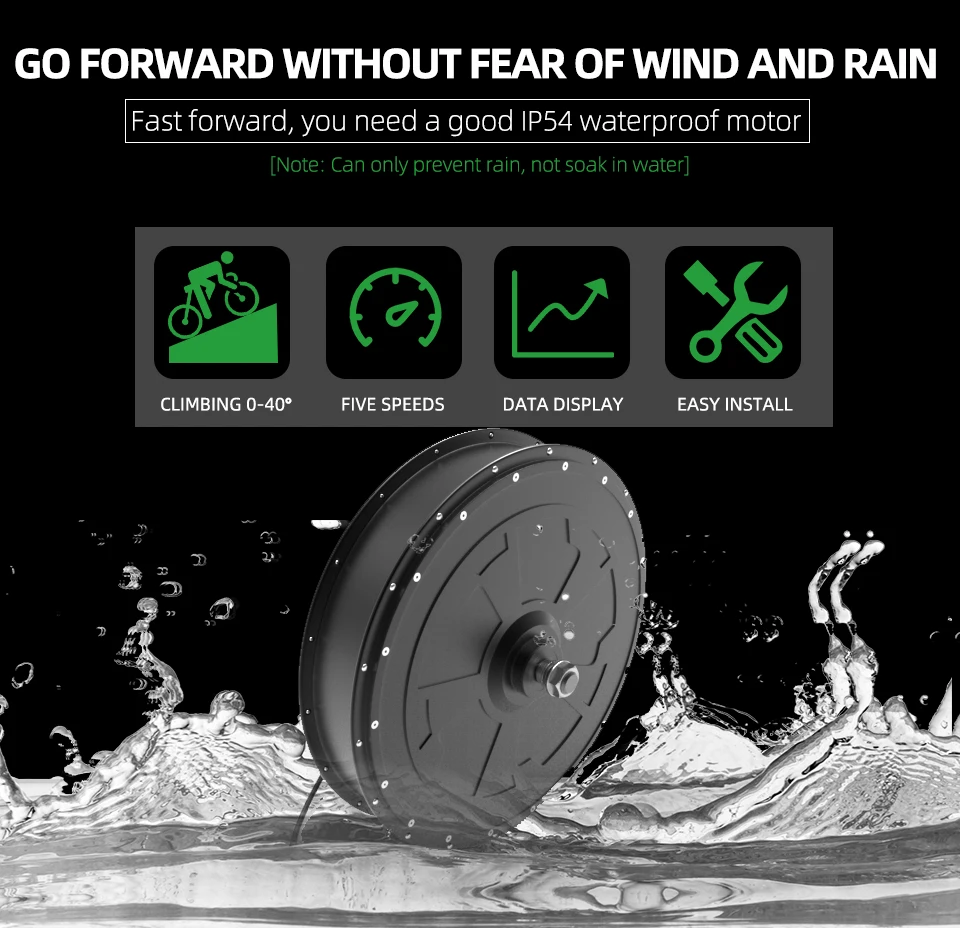

Waterproof: Yes

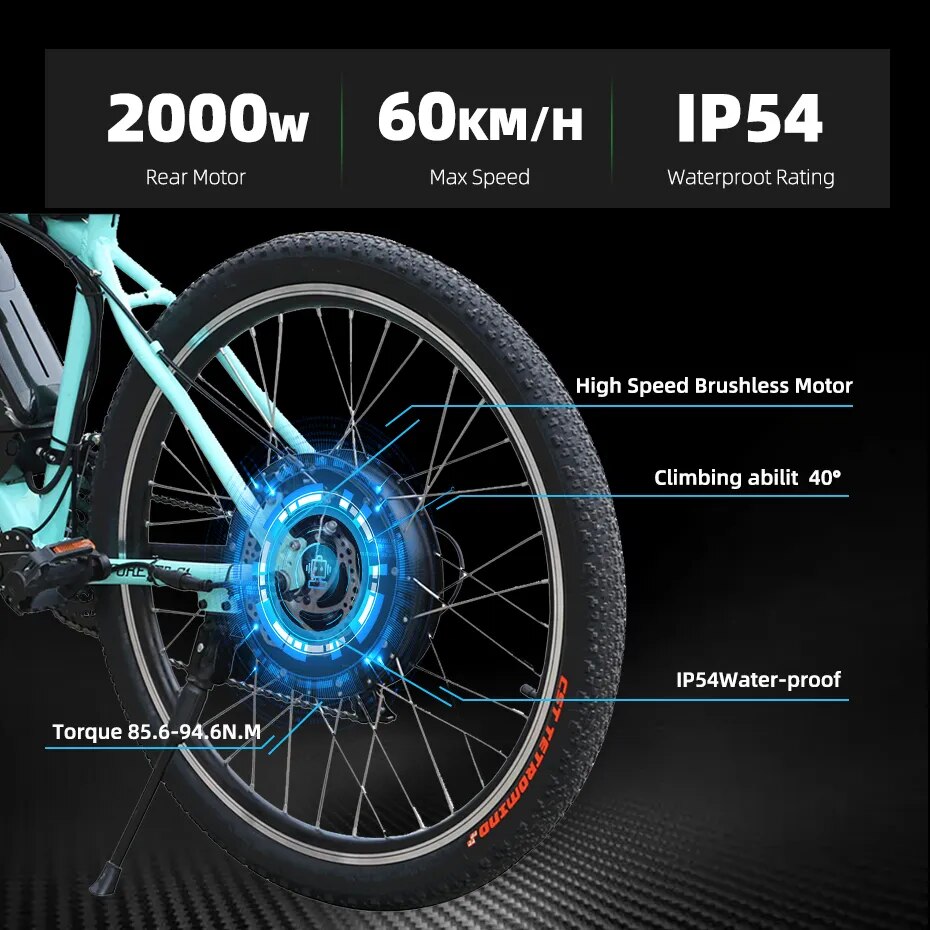

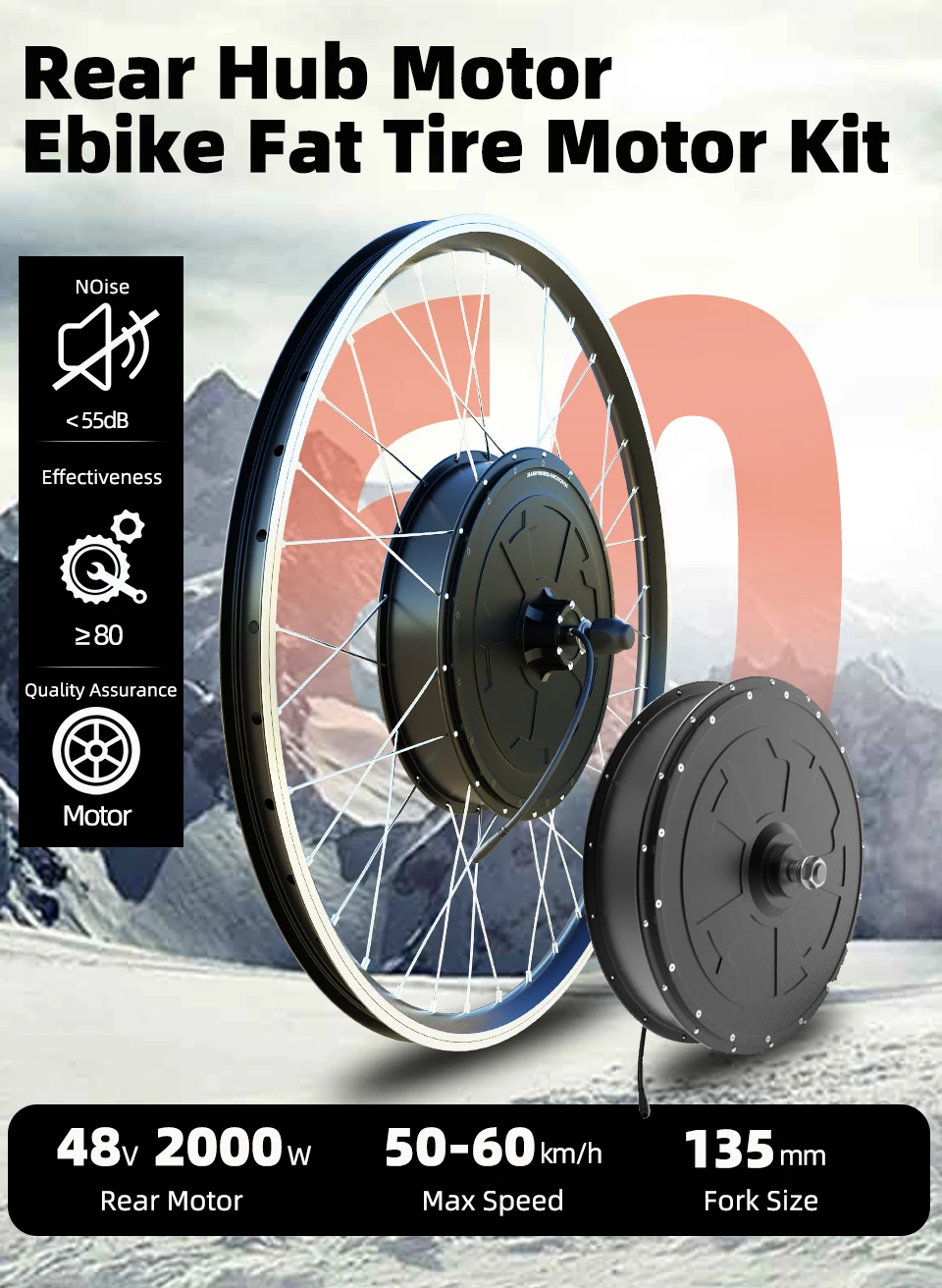

Rear Motor Wheel: Powerful 48V 2000w

Style: Powerful fast speed ebike kit

Suit: Electric bike/Road Bike/MTB/Bicycle



Feature：

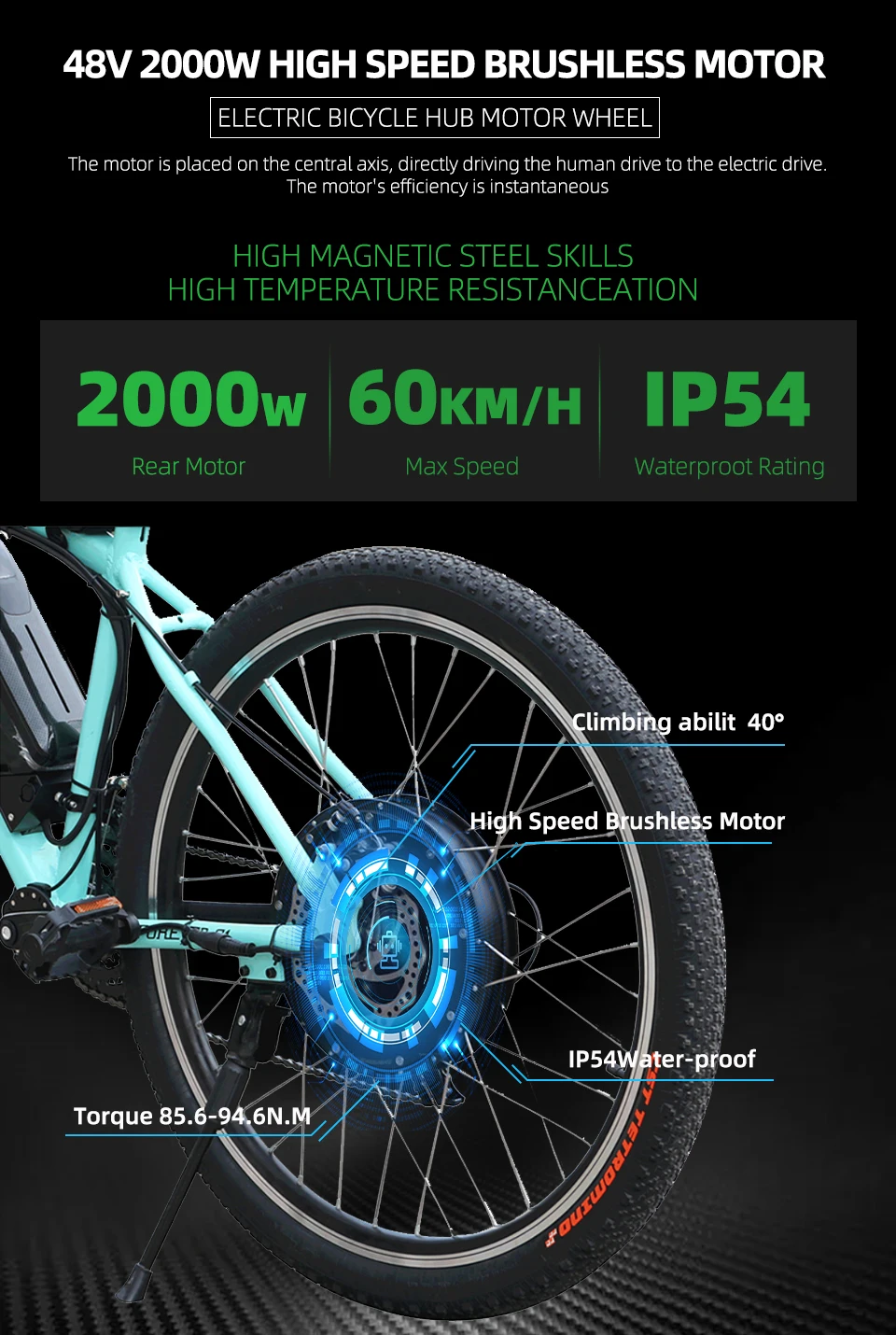

- Electric bicycle front wheel conversion kit features 48V 2000W brushless and gearless hub motor for efficient and noiseless running; can easily convert your bicycle to electric bike and reach the maximum riding speed of 60 KM/H, suitable for regular bicycles and mountain bikes that are used on commuting and short journey

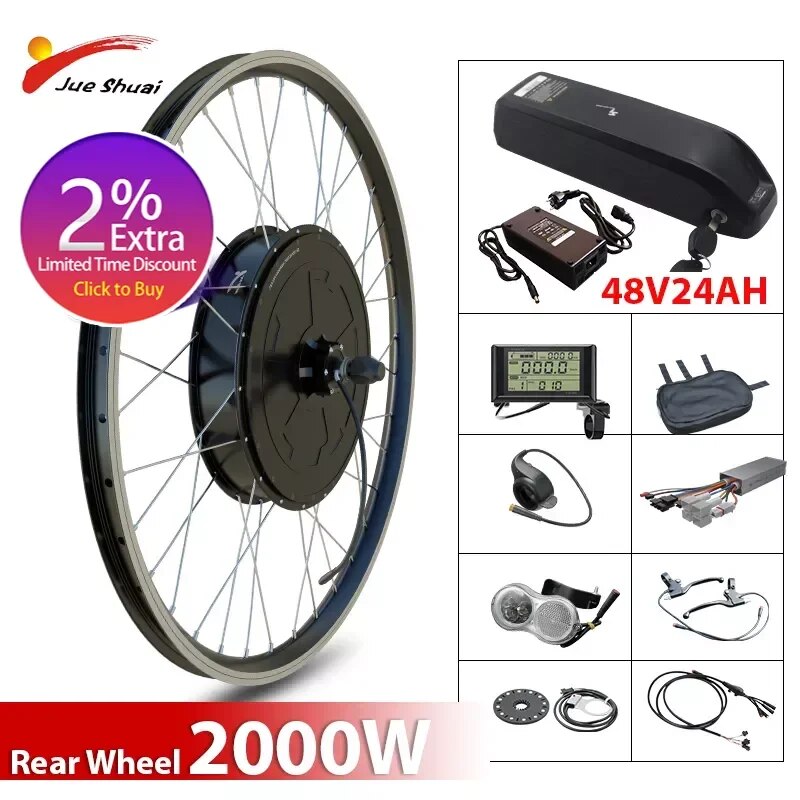

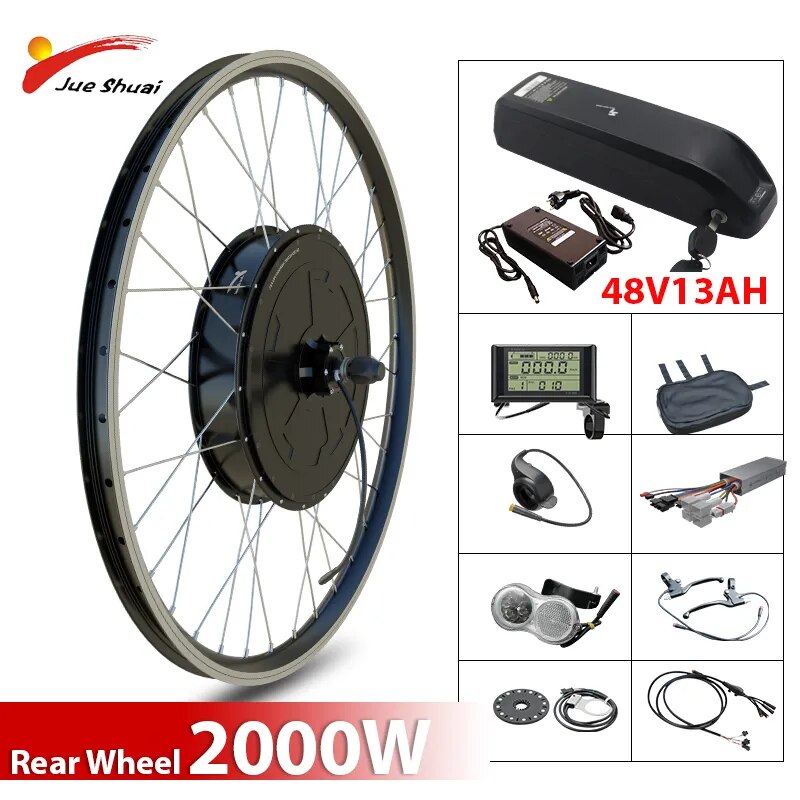

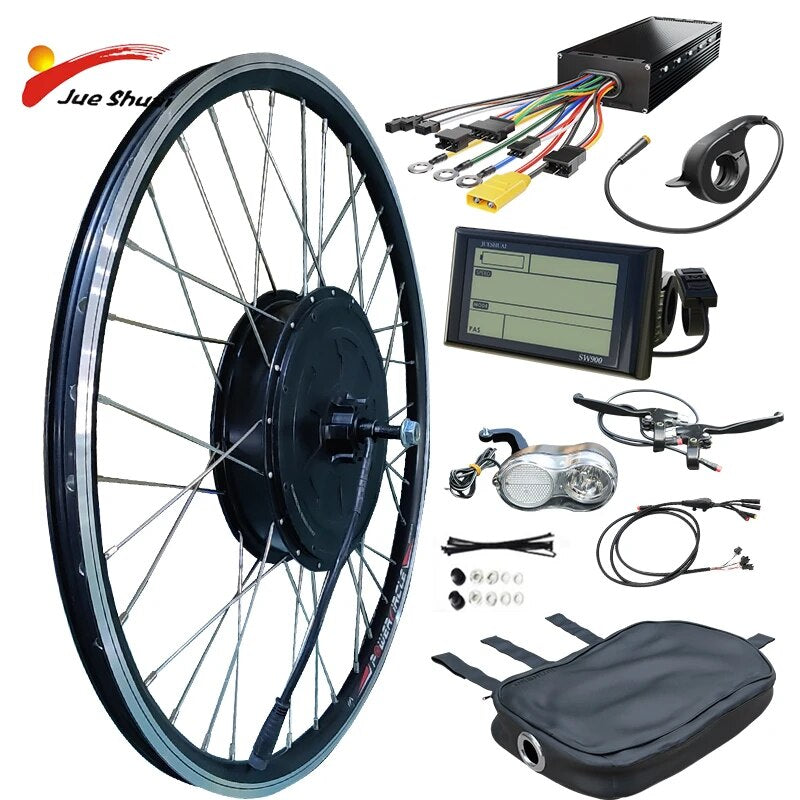

- Ebike Conversion Kit includes all necessary components for installation; Motor/Wheel, battery, controller, LCD display, throttle, brake levers, pedal assist sensor, torque arm, and cable ties. Tire is not included.



- Aluminum alloy frame for durability and stability, can support a heavy weight up to 220 Lbs; drive system without moving chains or gears for anti-friction; HD LCD display shows all the essential information such as battery percentage, speed, total and single trip distance, wattage, PAS levels, and error codes for easier troubleshooting.

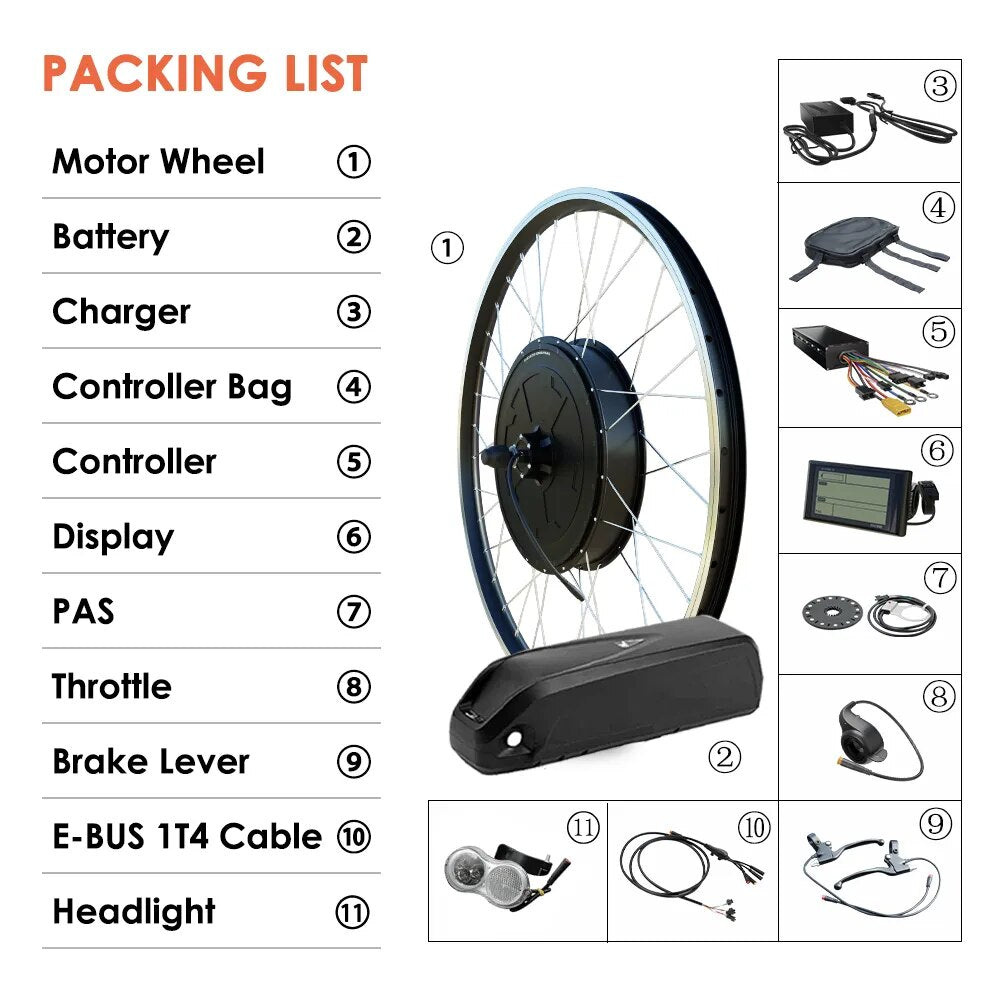

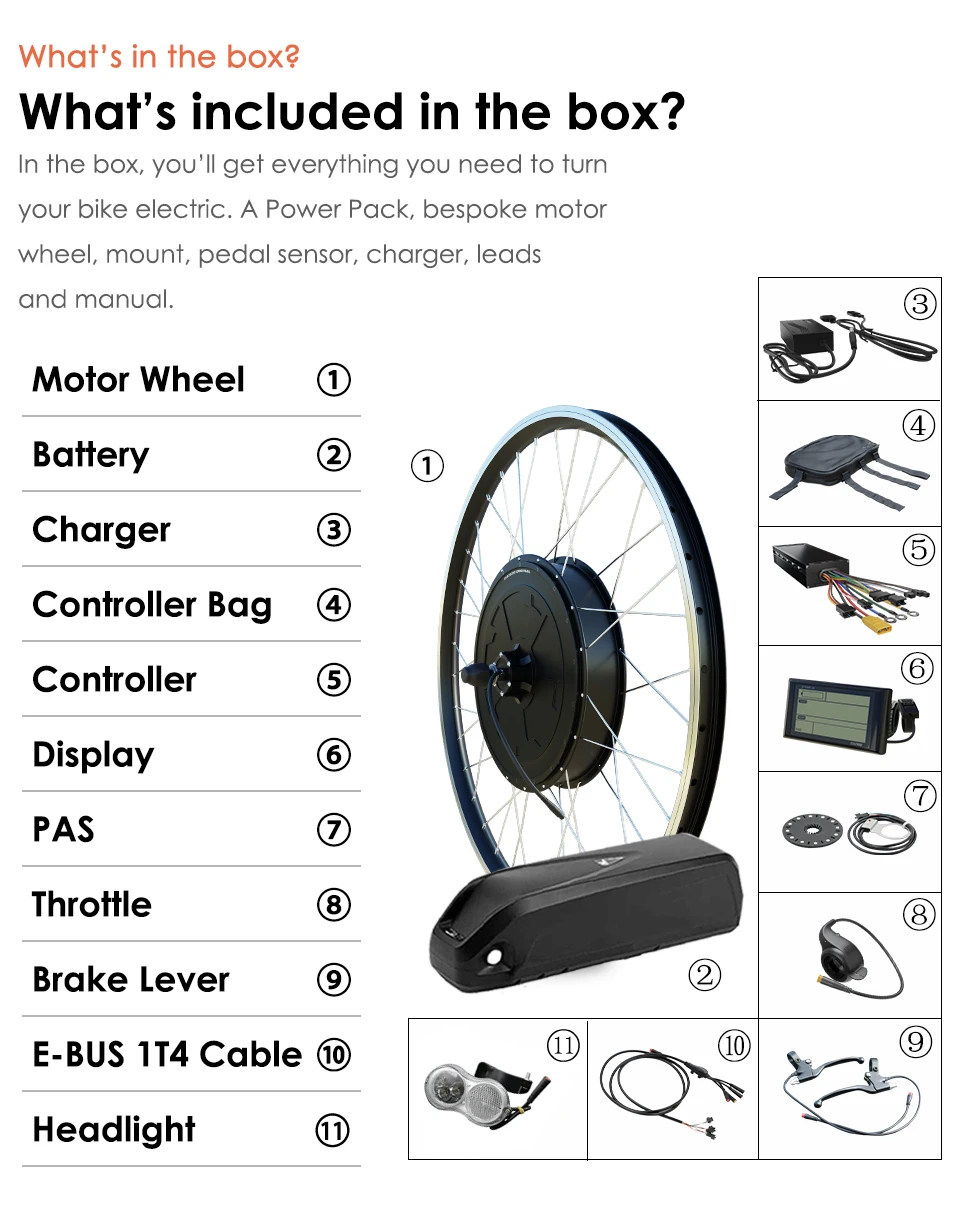

Packing List:

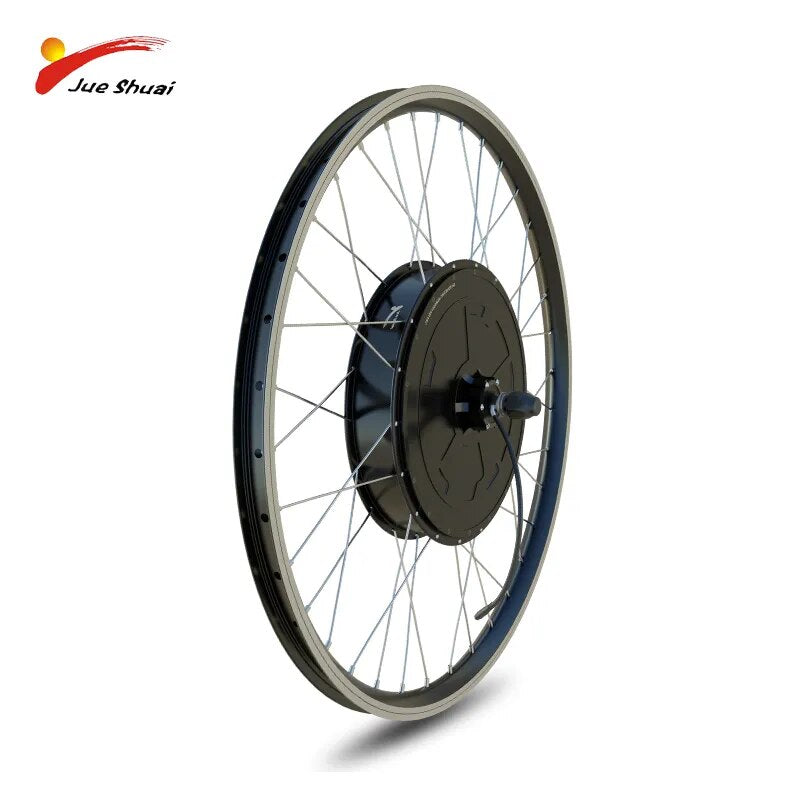

1 PCS * 48V 2000W Rear Hub Motor Wheel

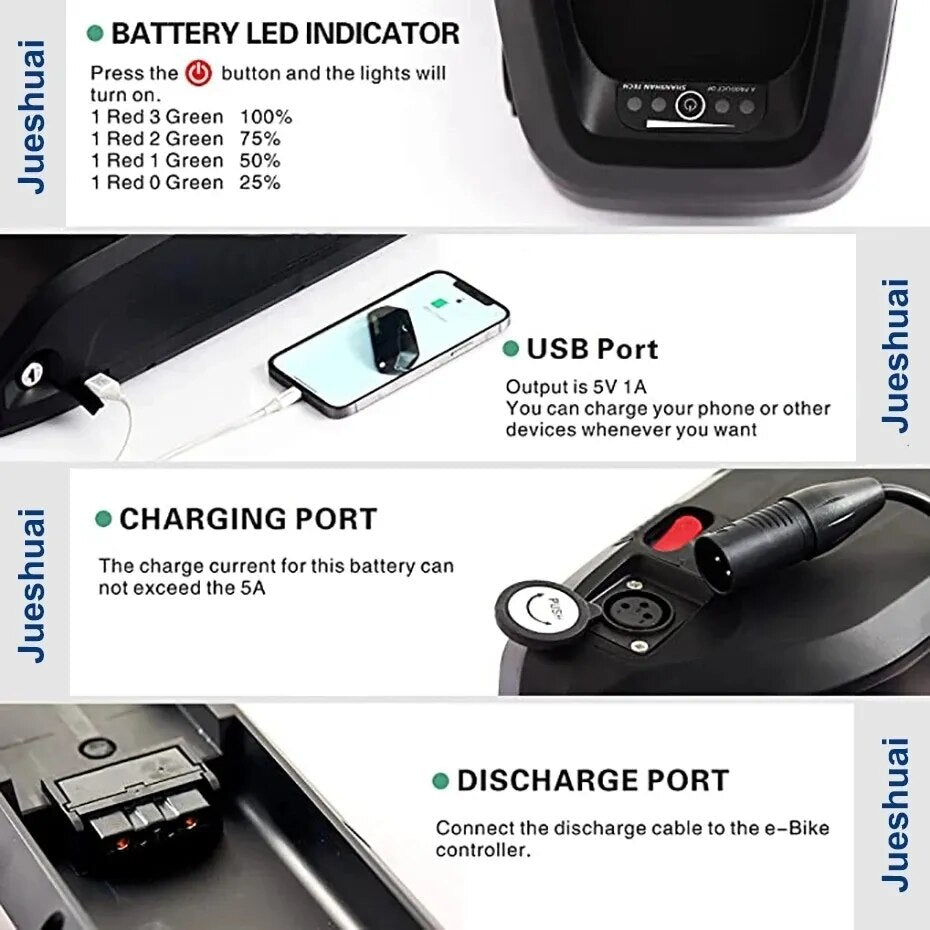

1*PCS * HAILONG Battery

1*PCS * Charger

1 PCS * Motor Extension Cable

1 PCS * DC Controller

1 PCS * Controller Bag

1 PCS * SW900LCD Display

1 Pair * Brake Levers or Brake Sensors (Default brake lever in warehouse）

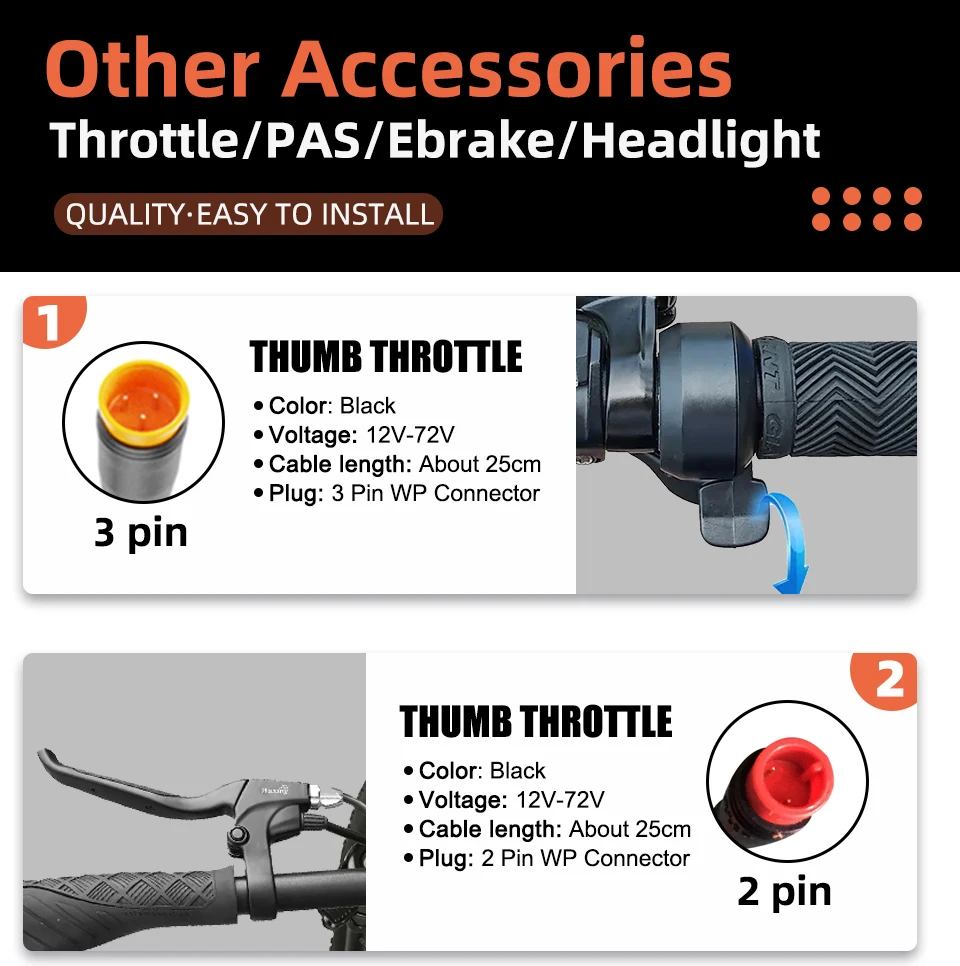

1 PCS * Thumb/ Half twist/Full twist Throttle (Default thumb throttle in warehouse）

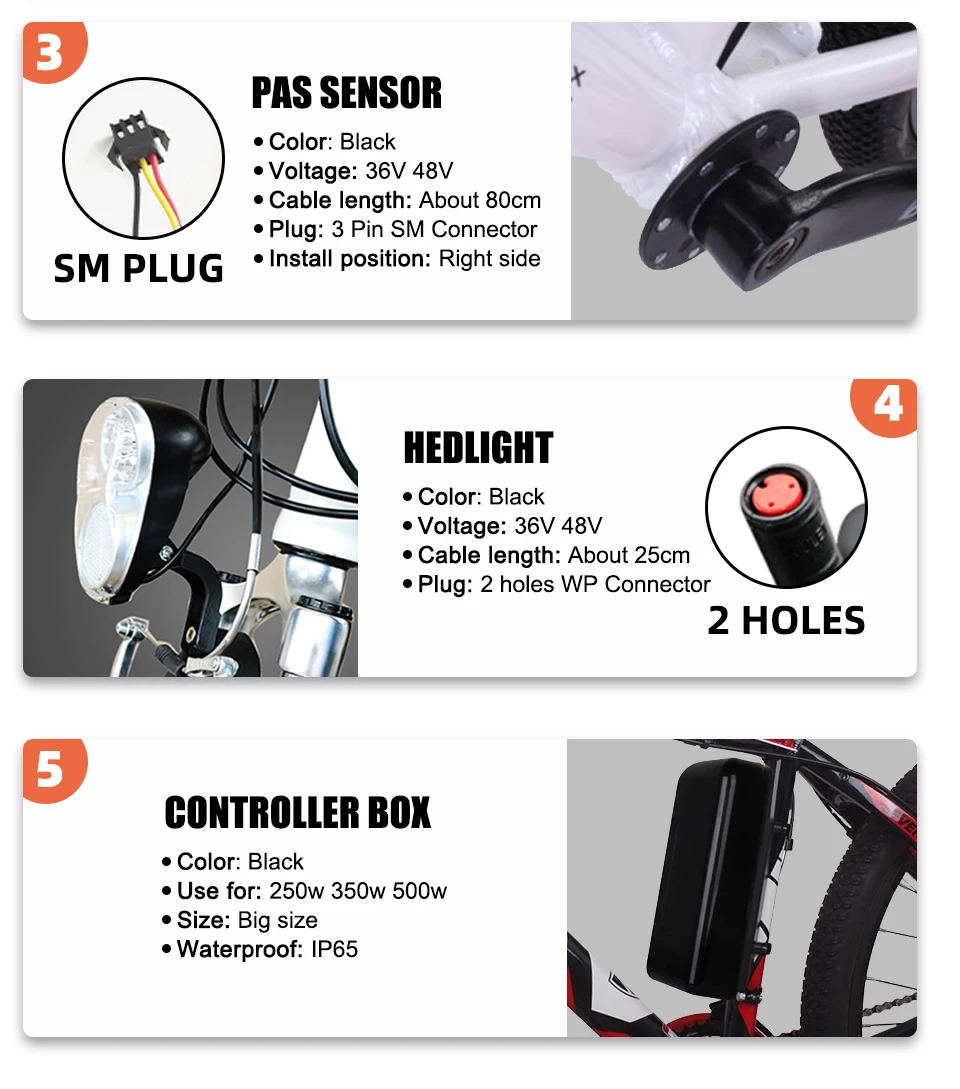

1 PCS * Upgraded 12 Magents Pedal Assistant Sensor

1 PCS * Waterproof 1T4 Cable

1 PCS * Headlight

NOTE:
* If you do not leave the message to us, we will choose brake lever and thumb throttle for you. Thanks!

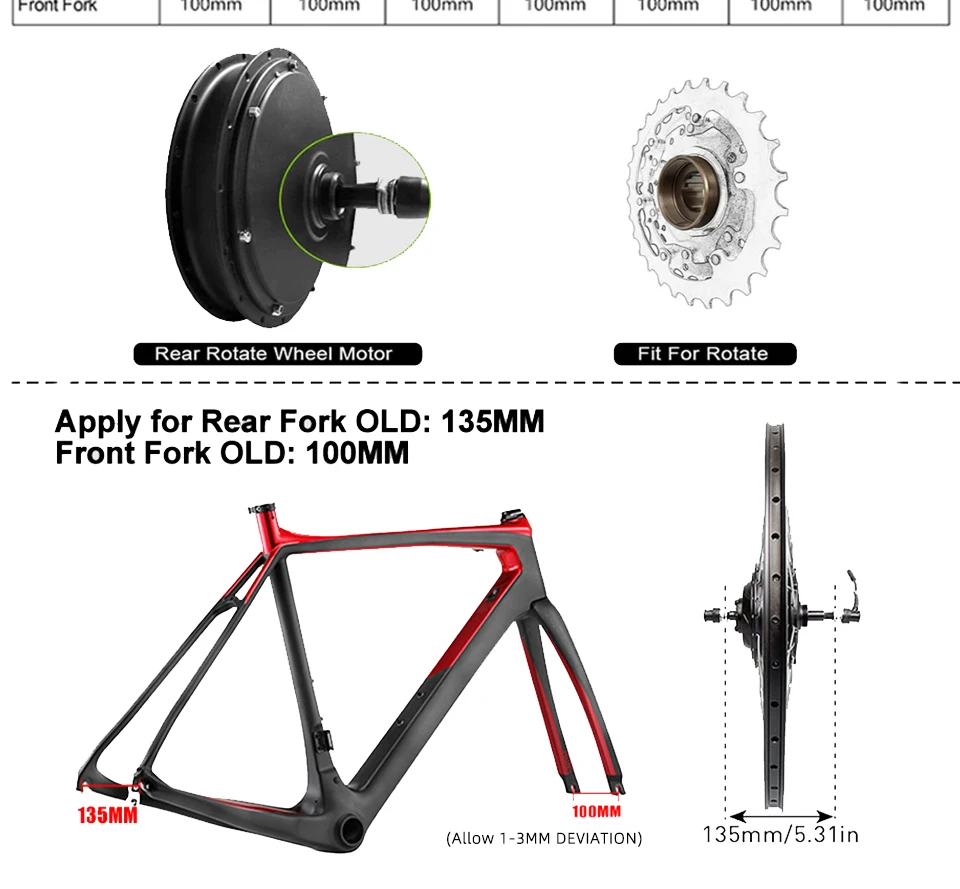

* This rear motor can fit 6 speed and 7 speed freewheel.

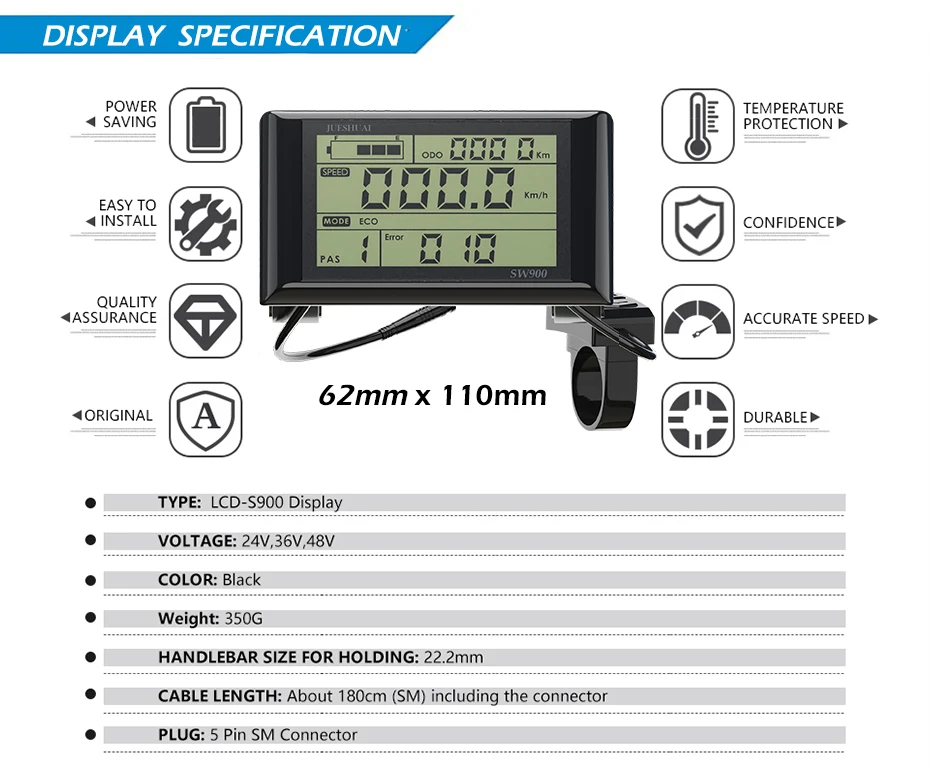

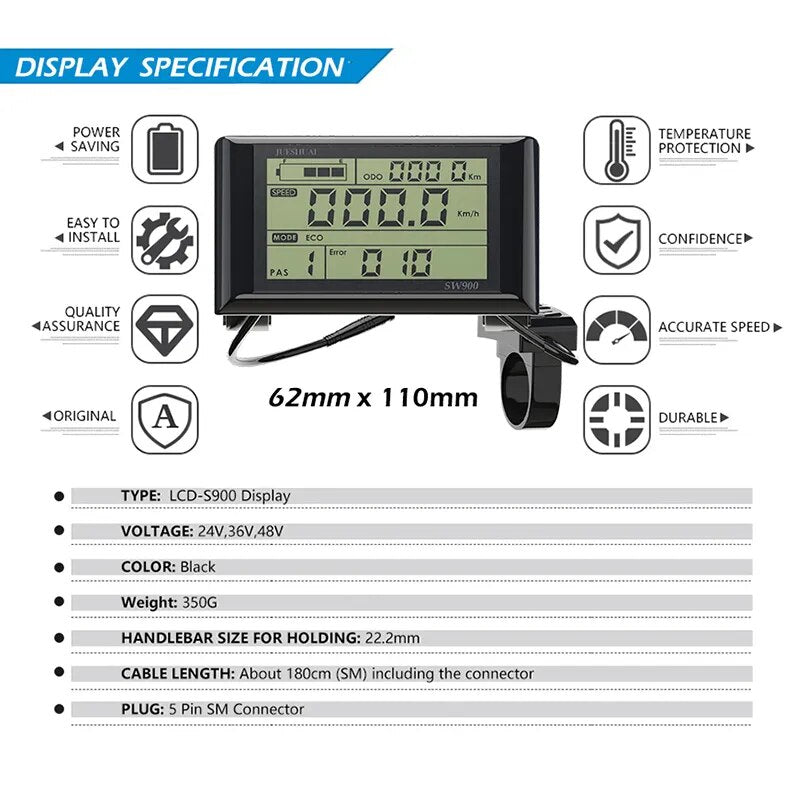

Overview of SW900 Display：

1) UART protocol:  Equipped with independent press buttons

2) Speed：Real-time SPEED，MAX SPEED， Average SPEED

3) kmh/mile：Kmh/MPH according to habit

4) Battery level：Indicates the battery level in real time

5) Head light control：Press button to power on/off

6) Back light adjustment：3-level adjustment

7) Assist level：From 0 to 5, press button to change assist level, 0-no assist, 5-default value

8) Distance：ODO/Trip/Driving duration

9) Error code：Please refer to appendix table 1 for definition

10) 6km mode：In this mode, it will display “WALK” on the screen

11)Parameter setting：Set parameters, such as: wheel size, speed limit etc

Controller Specification:
